Stainless Steel Pipe Making Machine
ITEM:
Stainless Steel Tube Mill
Line Up
- Single side / Double side uncoiler
- Strip butt welding equipment: Manual welding table or shear and butt welding machine
- 3 stage roller tube making machine
- Forming section
- Welding section
- Sizing section
- Cooling section
- Weld bead grinder
- Auto - cut off
- Run out table
- Electric control system
- TIG welding machine + cooling equipment/ plasma welding machine + cooling equipment
- Rolls made of SKD -11
The stainless steel pipe making machine, it is equipped with solid & rigid, stable under operation, and adopts of ground & high precise gear driving spindle to lower the malfunction of the machine. The most importance is that is always keep products have a standard top quality. In order to meet different working capacity required, we present a complete series machines to satisfy you at free choice.
| Model | Axle (mm) | Thickness (mm) | Round tube diameter (mm) | Square Tube (mm) | Speed (m) | Space WxHxL (M³) | Power (kw) |
|---|---|---|---|---|---|---|---|
| YCS-30 | 30mm | 0.3~0.8 | Φ6.5~Φ19 | 10x10, 15x15 | 3~7m | 2.2x2x18 | 21 |
| YCS-40 | 40mm | 0.4~1.5 | Φ9.05~Φ31.8 | 15x15, 25x25 | 2.5~7m | 2.4x2x20 | 25 |
| YCS-50 | 50mm | 0.6~3.0 | Φ12.7~Φ50.8 | 19x19, 40x40 | 1.5~6m | 2.6x2x22 | 35 |
| YCS-60 | 60mm | 0.8~4.0 | Φ19.0~Φ76.2 | 25x25, 60x60 | 1.0~5m | 2.8x2x23 | 43 |
| YCS-70 | 70mm | 1.2~5.0 | Φ25.4~Φ114.3 | 30x30, 90x90 | 0.5~4m | 3.5x2x25 | 58 |
| YCS-80 | 80mm | 1.5~5.5 | Φ38.1~Φ152.4 | 40x40, 120x120 | 0.4~3m | 4.0x2x28 | 70 |
| YCS-90 | 90mm | 2.0~6.0 | Φ50.8~Φ177.8 | 50x50, 140x140 | 0.4~3m | 4.0x2x32 | 100 |
| YCS-100 | 100mm | 2.5~7.0 | Φ76.2~Φ219 | 60x60, 170x170 | 0.3~2.5m | 5.0x2x35 | 115 |
| YCS-120 | 120mm | 3.0~9.0 | Φ127~Φ318 | 100x100, 250x250 | 0.3~2m | 6.0x2x38 | 125 |
This Type Of Machine Counted By The Axle
 |
 |
 |

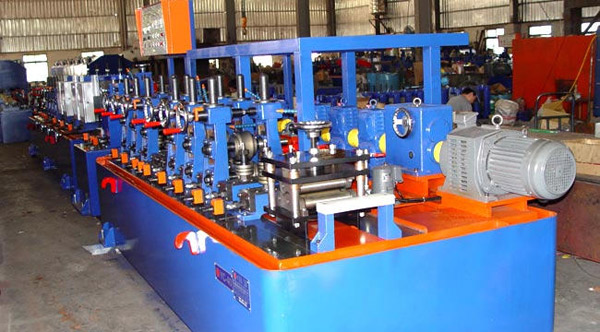

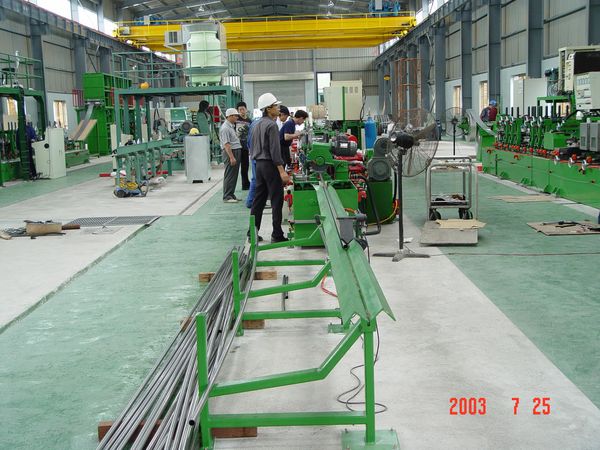

| Stainless Steel Tube Mill- Strip Butt Welding Equipment | Stainless Steel Tube Mill- Auto-Cut Off And Run Out Table | Stainless Steel Tube Mill |
 |
 |

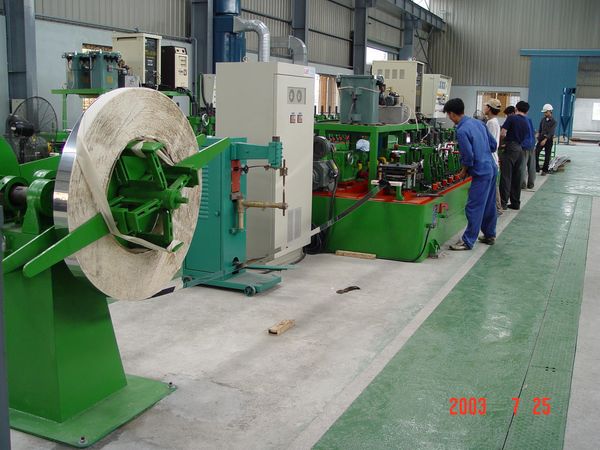

| Stainless Steel Tube Mill - Single Side/Double Side Uncoiler | |
 |
 |
 |

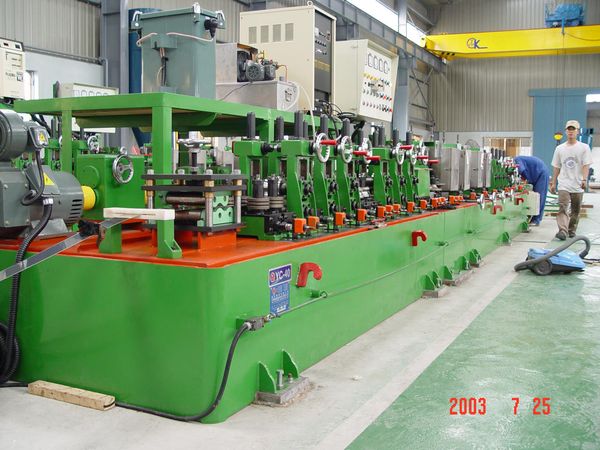

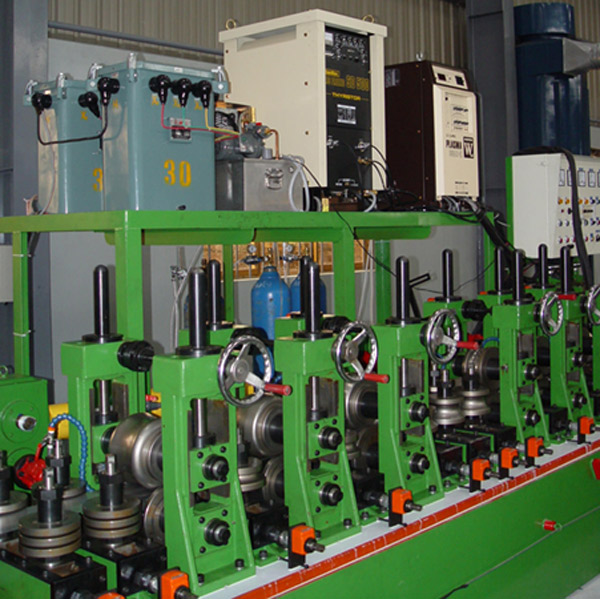

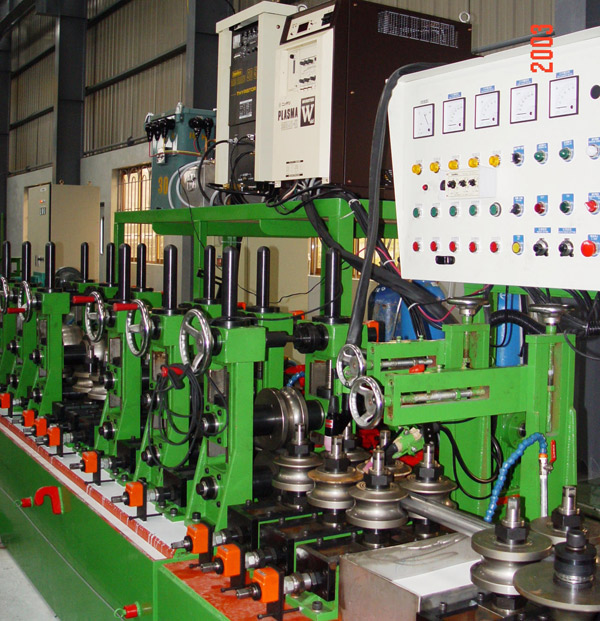

| Stainless Steel Tube Mill - Forming Section | ||
 |
 |
 |
 |
 |

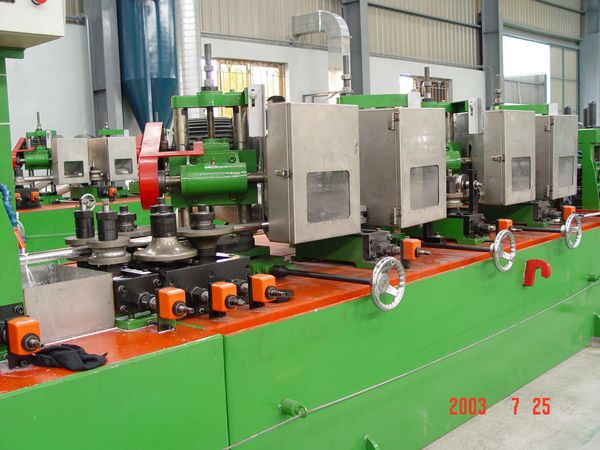

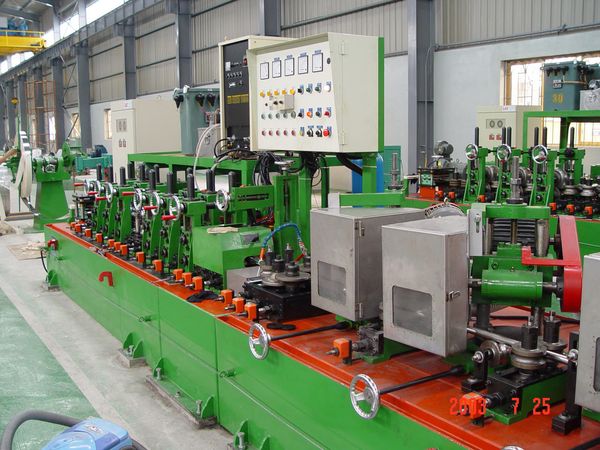

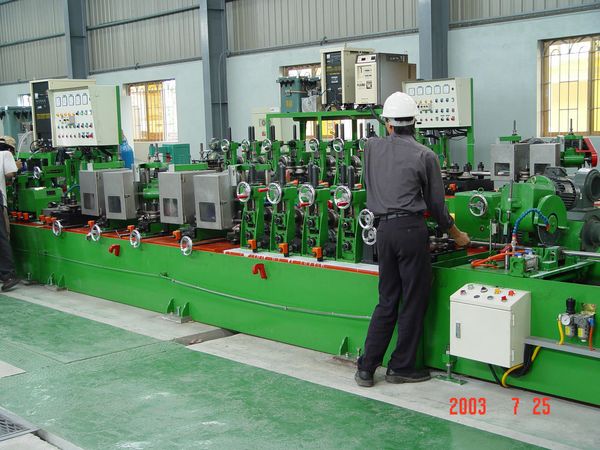

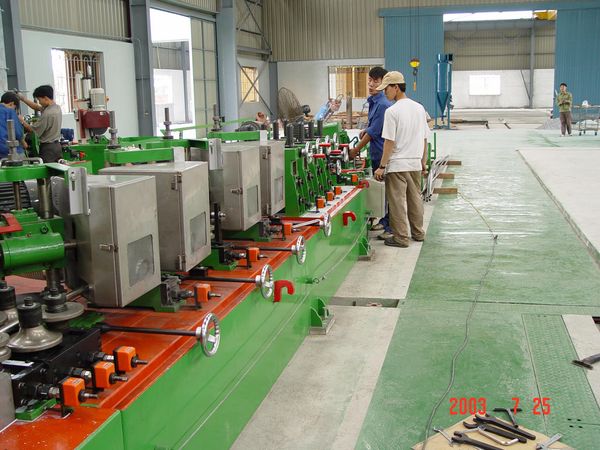

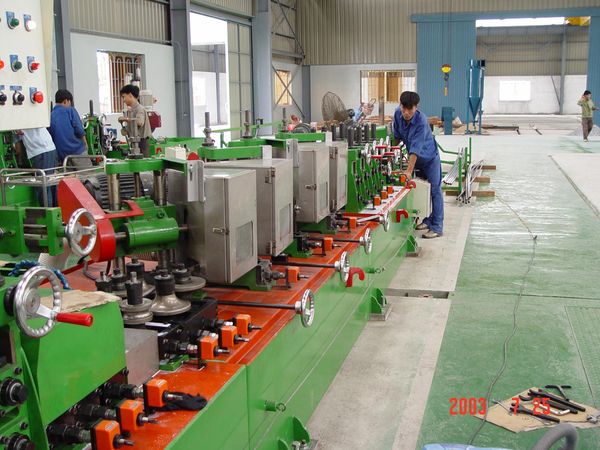

Stainless Steel Tube Mill - Sizing Section
 |
 |
 |
 |
 |

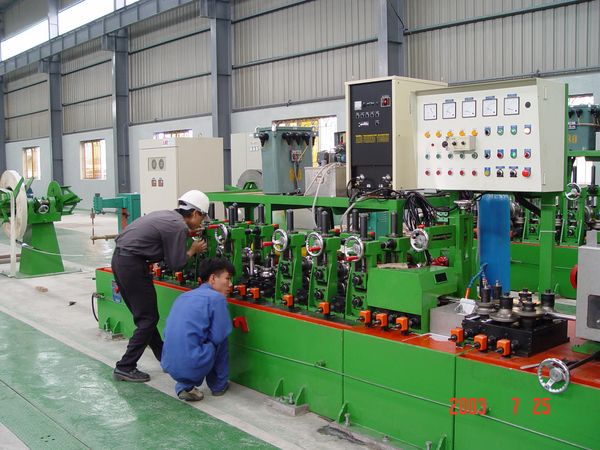

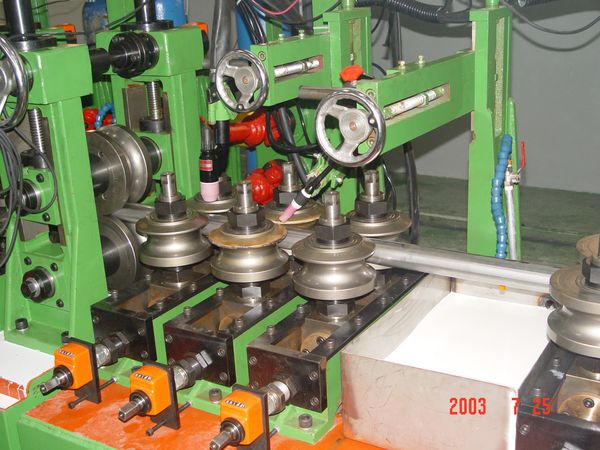

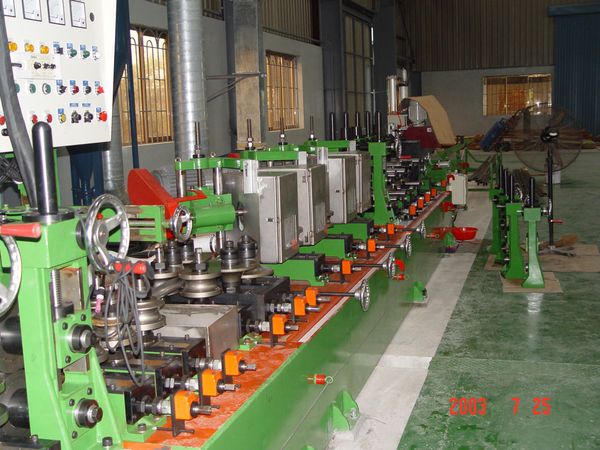

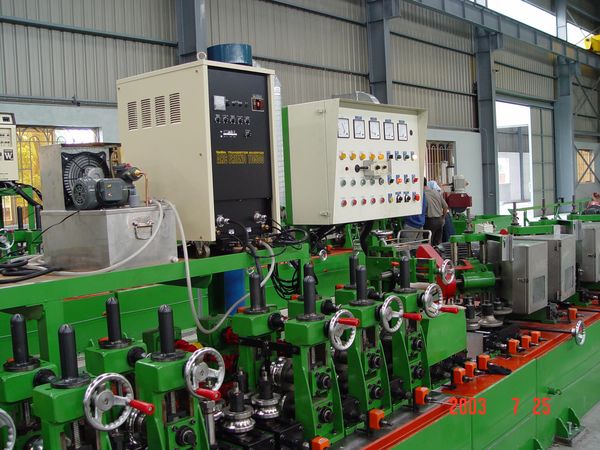

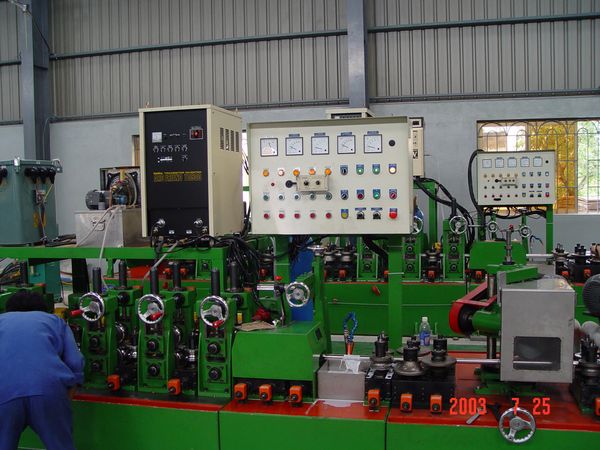

Stainless Steel Tube Mill - Welding Section
