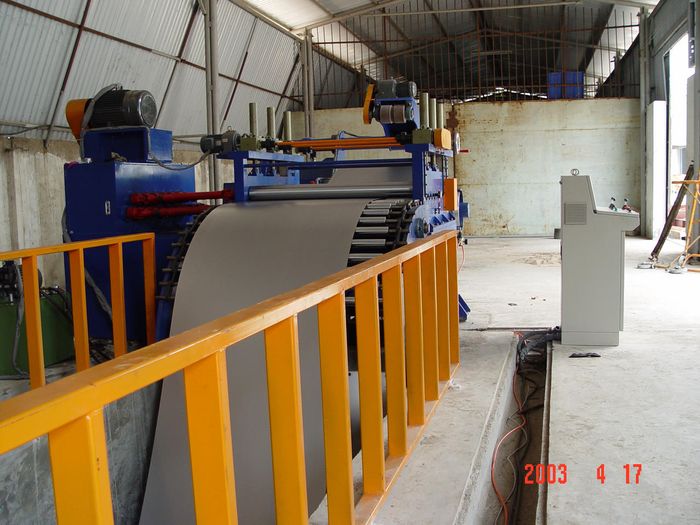

CNC Steel Sheet Leveling & Shearing Machine
Thanks for the most advanced Computerized Numerical Control (CNC) plus AC servo drive technology together with fully automatic hydraulic controlled uncoiler that ensure our CNC cut to length machine to achieve you tough cutting job for sheet steel metals with fast speed, greater accuracy improved efficiency, easy operation, and reducing manpower.
- Greater Cutting Accuracy
- Improved Reliability
- Planned Production
- Flexible Processing Alternatives
Line Up
- Single Side Uncoiler / Single Side Uncoiler + Coil Cart / Double Side Uncoiler + Coil Cart
- Rough leveling stand + loop pits with roller table.
- Automatic shearing machine + loop pits with roller table + side guide stand.
- Loop bridge.
- Precise leveling machine.
- Run-out conveyor with automatic stacking device.
- Electric control system.
- High speed computerized numerical control (CNC) and AC servo drive system for better positioning / cutting accuracy and reliability.
- High resolution graphic monitor for plant floor man machine interface (MIMI) message handling and display.
- Programmable function keys for specific tasks.
- Cutting function could be selected in either auto or maunal mode, in auto mode the system could make single step or continual operation.
- Key-In could be mode for setting : cutting length, quantity, job no., and parameter adjustment...via Nema type front panel.
- Dedicated screen / menu could be selected by the operator named as :job no.,cutting length, quantity, Parameters for setting operational parameters.
Model | Steel Sheet Thickness (mm) | Steel Sheet Width (mm) | Shearing Length (mm) | Coil Weight (Ton Max.) | Space Required ( M³ ) | Leveling Speed (Max.) | Power (HP) |
---|---|---|---|---|---|---|---|
YC-S420 | 0.2~2.0 | 600~1230 | 600~2440 | 15 | 5x2x21 | 40 m/min | 85 |
YC-S432 | 0.4~3.2 | 600~1230 | 600~3000 | 15 | 5x2x21 | 36 m/min | 90 |
YC-S460 | 2.0~6.0 | 600~1230 | 600~3000 | 15 | 5x2x26 | 34 m/min | 100 |
YC-S520 | 0.2~2.0 | 600~1560 | 600~3000 | 25 | 5x2x21 | 36 m/min | 95 |
YC-S532 | 0.4~3.2 | 600~1560 | 600~3000 | 25 | 6x2x21 | 35 m/min | 110 |
YC-S560 | 2.0~6.0 | 600~1560 | 600~3000 | 25 | 6x2x32 | 30 m/min | 150 |
